Porsche 996 Water Pump

The contemporary water-cooled Porsches have been known to have troublesome difficulties with their particular air conditioning systems. Two associated with the concept aspects of failure will be the thermoregulator and water pump.

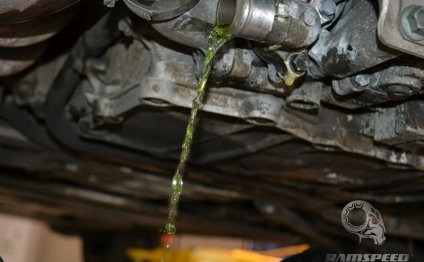

Begin the replacement procedure by jacking-up the car (Pelican Technical Article: jacking-up Your Porsche 911 Carrera) and eliminating the lower plastic tray that addresses the leading area of the motor and also the coolant hoses. Disconnect the low hose that is attached to the water pump (see Figure 4), and allow coolant vacant into a five-gallon or larger bucket. If you're changing your thermoregulator, also, then today would-be a good time to disconnect the hose pipe mounted on it aswell.

The next thing is to gain accessibility your water pump. This involves removing the primary belt (see Pelican Specialized Article: Replacing Belts on Porsche 911 Carrera). With all the gear removed, the rear of your engine should really be relatively available. Unfortuitously, the engine mount bar continues to be in the manner and needs is removed. Place a floor jack beneath the engine and carefully raise it to aid the extra weight of engine. Don't in fact lift the vehicle or even the motor, simply position the jack beneath the reduced motor cover until it softly makes contact. Generally, you must never lift the motor through the bottom sump. However for the reasons of simply giving support to the fat for the motor while changing the motor supports, the cover should suffice (see Figure 1 of Pelican Technical Article: Porsche 911 system Mount substitution). Begin by eliminating the brackets that hold the catalytic converters to the motor mount club (Figure 4). Upcoming, loosen the bracket from motor by eliminating the peanuts shown in Figure 5.

Seven bolts attach water pump to your motor, and accessibility a few of them may only be achieved from underneath the automobile. I will suggest making use of a flex 10mm socket to find yourself in the tight spots.

As soon as the engine was put together, Porsche installed the coolant manifold therefore the water pump collectively. Therefore, they normally use a shared gasket, that you must reduce apart being eliminate it through the motor. Figure 2 shows the gasket taken off water pump housing on the engine, and Figure 3 reveals where you must cut it being eliminate it. This new gasket also needs to be customized before set up (see Figure 3). Using the pump removed, look at the inside bore where in actuality the water pump suits for debris or corrosion. With a wire brush, remove any deterioration or dirt that'll have built-up there. Clean off the liquid pump installing area from the engine and install water pump using new gasket. Tighten down the bolts to 10 Nm (7 ft-lbs).

Currently, I also advise that you get rid of the thermostat housing (positioned below the liquid pump) and change the thermostat aswell. The thermostat is a relatively cheap component that may fail quite easily, that leads towards engine overheating. Just disconnect the thermoregulator hose pipe for those who haven't already, and unbolt the thermoregulator from engine. The thermoregulator was previously offered individually from the thermostat housing, the good news is Porsche plus the aftermarket manufacturers easy sell the complete assembly together incorporated unit.

The factory thermostat begins to open up at about 187 degrees F (86 levels C) and only completely opens up at virtually 210 degrees F (99 levels C). Which means the motor needs to get scorching before it starts giving its coolant into the front side radiators. This is exactly why, i suggest installing a low-temperature thermostat rather than the factory one. LN Engineering has continued to develop a thermostat that begins starting at 160 degrees F (71 degrees C) and is totally open at about 180 levels F (82 degrees C). Reduced coolant conditions lead to reduced oil temperatures, together with dyno checks that LN Engineering has actually carried out on automobiles using low-temp thermoregulator installed have revealed a little rise in horsepower (typically about 5 horsepower). It is my reckon that Porsche designed the thermostat to open quite later in order to help the vehicles run a bit hotter, which typically is great for emissions screening while the burning off of liquid out from the oil, that may after that induce longer oil change periods. Setting up the low-temp thermoregulator is an intelligent idea for motor longevity-it's designed for about $175 from PelicanParts.com.
