Porsche Boxster Convertible Top

This photo shows some of the components you could possibly want to repair your convertible top. A- Convertible top engine (abilities both remaining and correct sides at precisely the same time). B- Ball pivot pin (2 req) C- Control cable D- Improved transmission set up (boosts the leverage of this motor to lift the most notable), left and right required E- Control lever (attaches towards other region of the transmission assembly), 2 req F- Improved transmission set up standoffs. They are needed to bolt the transmission installation in identical place your old one fit, 2 req G- Switch to identify shut position associated with the top handle H- Bushing for convertible top push pole (item J), 2 req J: Convertible top push pole (brings and pushes the utmost effective open and shut), 2 req

Figure 2

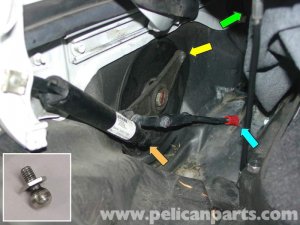

This image shows great destruction from the left region of the convertible top motor assembly. The blue arrow reveals the purple synthetic basketball plug for top set up who has totally damaged away. This generally would link a pivot baseball pin that's located out-of view nearby the green arrow. Also, the process for lifting a corner material address has actually entirely sheared off aswell. The pivot baseball pin (shown in inset) would ordinarily be mounted on end associated with control lever (yellow arrow), but due to the top getting caught, it was broken off. In this case, the most notable transmission, the lever, and also the convertible top push pole would have to be changed with brand-new parts.

Figure 3

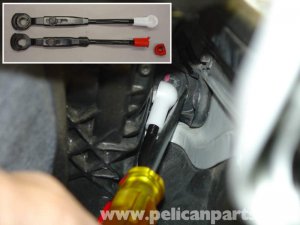

Should your convertible top push pole has actually broken, then you will need certainly to replace it with a brand new one. Unfortunately, during this writing, a brand new plastic ball glass end is only offered by buying a completely brand-new rod (about ). When you get the latest rod, range it up to your old one, and work out certain both are a similar length. Alter the two adjustment points regarding rod if required. to put in the rod back on the convertible top linkage, make use of a screwdriver wedged up inside the mechanism to obtain the necessary control to break it on.

Figure 4

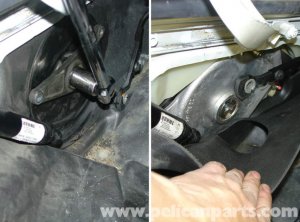

To get rid of the convertible top transmission, begin by removing the boomerang-shaped lever (left photo). Making use of a 19mm plug and a breaker bar, you should be capable loosen the bolt and take away it through the transmission. Within particular case, the lever arm had curved plus the transmission had in addition damaged. Pull back on the foam noise deadening material to reveal the convertible top transmission (right image). Three nuts mounted on standoffs hold the transmission in place.

Figure 5

This photo reveals various steps a part of getting rid of the transmission and disconnecting the cable. A- utilizing the three peanuts removed, pull back regarding the transmission and individual it from side of the automobile. B- unwind the four peanuts regarding the rear of this transmission housing, but don't remove them. C- With enough slack in system, very carefully pull-out the cable. D- The green arrow reveals the three standoffs that need to be replaced in the event that you update towards later-style convertible transmission. E- The later-style transmission enables you to just break the cable...
